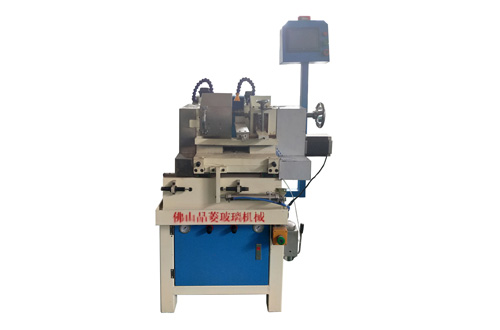

Detailed Description: Machine sets advanced technology of domestic and foreign glass machinery, reasonable design, high processing accuracy, easy operation, high production efficiency, is the choice of equipment for glass manufacturers.

The machine adopts clamp hoop centring structure, and has a copying device which can simultaneously grind and chamfer lens.

This machine adopts double wave bar linear guide rail, so that the accuracy of machine tool is more stable, and the service life of machine tool is longer.

This machine adopts a famous factory inverter, and can realize continuously variable transmission of headgear spindle.

Two. Main technical parameters

Workpiece size: 120/ mm, 150/ 175mm

Diamond grinding wheel dimension: 80mm- 160mm

The moving range of headstock (lens bearing frame): 0 mm to 10 mm (optional)

The speed of the lens shaft is 9r/cycle

Wheel speed: 3500rpm

Mirror shaft motor: 380V/370W

Grinding wheel shaft motor: 380V/550W

Cooling pump: 380V/90W

Size: 840mm * 760mm * 1260mm

Weight: 400KG/500KG
